Series AN-6235

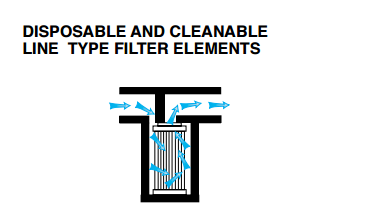

Disposable and Cleanable Line Type Filter Elements
|
AN SERIES PART NO. |
FLOW EZY PART NO. |

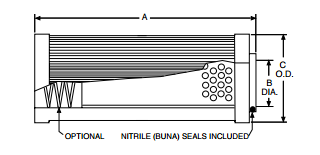

A | B | C | O-RING NO. |
|---|---|---|---|---|---|
| AN SERIES PART NO. AN-6235-1A | |||||
| AN 6235-1A-03G | 9133-22 | 1-7/8 | .391 | 53/64 | 2-012 |
| AN 6235-1A-10C | 9133-11 | ||||
| AN 6235-1A-25W | 9133-05 | ||||
| AN 6235-1A-40W | 9133-04 | ||||
| AN 6235-1A-74W | 9133-02 | ||||
| AN 6235-1A-149W | 9133-01 | ||||
| AN 6235-1A-238W | 9133 | ||||
| AN 6235-1A-590W | 9133-30M | ||||
|
AN SERIES PART NO. |
FLOW EZY PART NO. |
A | B | C | O-RING NO. |
|---|---|---|---|---|---|
| AN SERIES PART NO. AN-6235-2A | |||||
| AN 6235-2A-03G | AN 6235-2A-03G | 4-5/8 | .641 | 1-1/8 | 2-114 |
| AN 6235-2A-10C | AN 6235-2A-10C | ||||
| AN 6235-2A-25W | AN 6235-2A-25W | ||||
| AN 6235-2A-40W | AN 6235-2A-40W | ||||
| AN 6235-2A-74W | AN 6235-2A-74W | ||||
| AN 6235-2A-149W | AN 6235-2A-149W | ||||
| AN 6235-2A-238W | AN 6235-2A-238W | ||||
| AN 6235-2A-590W | AN 6235-2A-590W |
|
AN SERIES PART NO. |
FLOW EZY PART NO. |
A | B | C | O-RING NO. |
|---|---|---|---|---|---|
| AN PART NO. AN-6235-3A | |||||
| AN 6235-3A-03G | 6836-03G | 3-7/16 | .890 | 1-5/8 | 2-212 |
| AN 6235-3A-10C | 6836-10C | ||||
| AN 6235-3A-10W | 6836-10W | ||||
| AN 6235-3A-25W | 6836-25W | ||||
| AN 6235-3A-40W | 6836-40W | ||||
| AN 6235-3A-74W | 6836-74W | ||||
| AN 6235-3A-149W | 6836-149W | ||||
| AN 6235-3A-238W | 6836-238W | ||||
| AN 6235-3A-590W | 6836-590W | ||||
|
AN SERIES PART NO. |
FLOW EZY PART NO. |
A | B | C | O-RING NO. |
|---|---|---|---|---|---|
| AN PART NO. AN-6235-4A | |||||
| AN 6235-4A-03G | 6927-03G | 4-7/16 | 1.015 | 1-3/4 | 2-214 |
| AN 6235-4A-10C | 6927-10C | ||||
| AN 6235-4A-05W | 6928-05W | ||||
| AN 6235-4A-10W | 6928-10W | ||||
| AN 6235-4A-25W | 6928-25W | ||||
| AN 6235-4A-40W | 6928-40W | ||||
| AN 6235-4A-74W | 6928-74W | ||||
| AN 6235-4A-149W | 6928-149W | ||||
| AN 6235-4A-238W | 6928-238W | ||||
| AN 6235-4A-590W | 6928-30-MESH | ||||
|
|||||
