Shown with optional U‑Bracket
REPLACEMENT ELEMENTS 350 PSID
MICRON RATING |
6IL PART NO. |
15IL PART NO. |
---|---|---|
REINFORCED ΔP ELEMENTS | ||
595 | 8504-595 | 8560-595 |
238 | 8504 | 8560 |
149 | 8504-01 | 8560-01 |
74 | 8504-02 | 8560-02 |
40 | 8504-04 | 8560-04 |
25 | 8504-05 | 8560-05 |
10W | 8286-10W | |
05C | 8504-20 | 8560-20 |
10C | 8504-11 | 8560-11 |

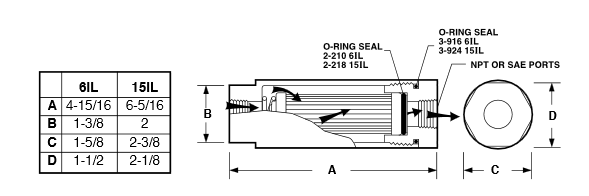

1500 and 3000-PSI In-Line Filters
For 238, 149 and 74…
.75 psi (1.5 IN. Hg) pressure drop at 150 SUS viscosity fluid.
6IL rated at 5 GPM (suction). 15IL rated at 15 GPM (suction). These filters can also be used for higher return flows. Here higher pressure drops (to 350 psi) can usually be tolerated and finer micron ratings are possible depending on element pore size and fluid viscosity. Their sturdy machined-aluminum, steel, or stainless steel housings give them the strength to be pressure rated at 1500 or 3000 psi.
These units use pleated elements made from either stainless steel wire cloth or cellulose (paper), with a perforated metal support tube inside. These elements can be easily removed for cleaning or replacement. (They can not be cleaned by backflushing while in the housing.

Select the desired specifications from the ordering table and build an ordering code number, as shown in this sample:
MODEL CODE | ||||||||
---|---|---|---|---|---|---|---|---|
61LA | - | 03 | - | 74 | - | F3 | - | U |
STYLE | - | PORTS | - | ELEMENT | - | SEALS | - | BRACKET omit if not wanted |
Style | Ports | Elements† (Micron) |
Seals | Bracket | |
---|---|---|---|---|---|
NPT | SAE | ||||
6ILA, (Aluminum, 1500 psi 6ILS (Steel, 3000 psi) 61LSS (Stainless Steel 3000 psi) |
03 (3/8) 04 (1/2) |
03S (3/4-16) UNF-2B 04S (7/8-14) UNF-2B |
Stainless wire: 595 238 149 74 40 25 10* Cellulose: 5C 10C |
no symbol (Buna N) F3 Viton |
U |
15ILA (Aluminum, 1500 psi 15ILS (Steel, 3000 psi) 15ILSS (Stainless Steel, 3000 psi) |
06 (3/4) 08 (1) |
06S (1-1/16-12) (UNF-2B) 08S (1-5/16-12) (UNF-2B |
†Other element ratings available on request *Available on 6IL only.
6IL & 15IL U-BRACKETS
TO FIT | FLOW EZY NO |
---|---|
6ILA & 6ILS 6ILSS |
HCOC26 HCOC26SS |
15ILA & 15ILS 15ILSS |
HCOC38 HCOC38SS |
