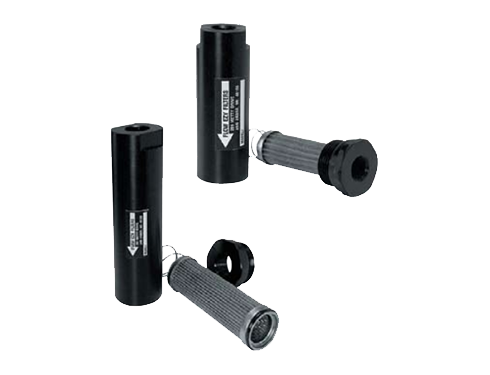

image of a replacement lube filter

300 PSI Inline Filters

Anodized aluminum housing with stainless steel filter elements.

Pressure Rating: 300 PSI
Housing Material: Anodized Aluminum

Pleated Screen:
Flow Rate:
Filtration Area:
Weight:
Dimensions: 		Stainless Steel
Up to 2 GPM
1 Square Inch
3 Ounces
1/4 NPT: 1.75 x 1-in.
3/8-in. Tube Size 6: 2.88 x 1-in.
Pleated Screen:
Flow Rate:
Filtration Area:
Weight:
Dimensions: 		Stainless Steel
Up to 4 GPM
20 Square Inches
6.6 Ounces
4-21/32 x 1-1/2-in.
Pleated Screen:


Flow Rate:
Filtration Area:
Weight:
Dimensions: 		Microglass, Cellulose,
Stainless Steel
(Stainless Steel Elements)
Up to 14 GPM
60 Square Inches
1 Pound 2 Ounces
7-25/32 x 2-1/8-in.

MOUNTING CLAMPS

Clamps are "tailor made" for in-line filters. Made of stainless steel, with thermoplastic elastomer bushings tough enough to withstand temperatures up to 300°.

TO FIT FLOW EZY NO
4ILA HCOC24
HCOC24SS
14ILA HCOC34
HCOC34SS

Select the desired specifications from the ordering table and build an ordering code number, as shown in this sample:

MODEL CODE
41LA - 03 - 74 - F3 - RD
MODEL - SIZE - MICRON - SEALS - COLOR

MODEL
NUMBER		 CONNECTION
SIZE		 MICRON
SIZE		 SEALS COLOR
ILA 02
(1/4-in. NPT)		 238
149
74
40
25
10		 No Symbol
Buna N

F3
Viton		 RD
Red

BK
Black

Bl
Blue
4ILA 02
(1/4-in. NPT)
03
(3/8-in.NPT
04
(1/2-in. NPT)		 595
238
149
74
63
40
25
10
14ILA 02
(1/2-in. NPT)
06
(3/4-in.NPT
08
(1-in. NPT)		 595
238
149
74
63
40
25
10
10C
5C

REPLACEMENT SCREENS

PART MICRON
6180-01(238)
6180-05(149)
6180-02(74)
6180-01(40)
6180-01(25)
6180-10(10)

8504-595 595
8504 238
8504-01 149
8504-02 74
8504-04 40
8504-05 25
8504-11 10C
8504-20 5C
8286-10W 10W

8731-30(595)
8731(238)
8731-01(149)
8731-02(74)
8731-03(63)
8731-04(40)
8731-05(25)
8731-25(10W)
8731-11(10C)
8731-20(5C)
