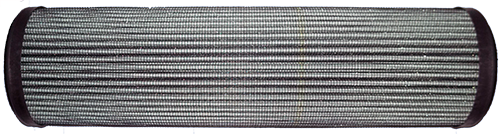

COALESCING FILTER ELEMENT FOR STANDARD FILTER HOUSING
This new filter cartridge will fit into our standard SH Series filter housings. The media is used in liquid/gas or liquid/liquid coalescing applications for the immediate and effective separation of water from liquids, or oil mist and water from air streams. The technology is a proven one with borosilicate microfiberglass offering the highest level of coalescence at the lowest pressure drop. The fluoropolymer oil and water repellency treatment processes ensure exacting separation of targe compounds and log element life.
Order Part Number 54840
| LIQUID/LIQUID APPLICATIONS | LIQUID/GAS APPLICATIONS |
|---|---|
| Water removal from: | Oil or water removal from: |
| Jet fuel | Compressed air |
| Diesel fuel | Refrigerants |
| Hydraulic fluids | Automotive CCV |
| Coolants | Natural Gas |
- 237 sq. in. of effective filtering area in 10" cartridge (20" and 30" length available)
- Stainless steel end caps with Buna or Viton gaskets
- Stainless steel inside perforated support tube
- Scrim reinforcement layer
- 2 5/8" OD
- 1" ID
- 6 micron level of filtration
- 0.5 pressure drop across clean media
- Water repellency - 20 inches
- Temperature rating - 350° F
- Epoxy bonded
