Industrial Process Filter Cartridges

Fits most cartridge-type housings

Overcome the temperature and compatability limitations of fabric or synthetic fiber cartridges by replacing them with these stainless steel wire cloth elements. They are good up to 500 degrees F, instead of the usual 250 degrees F, and they are unaffected by most caustic fluids.

Made entirely of 304 or 316 stainless steel, they are cleanable and reusable, and can withstand differential pressures up to 60 psi (500 psid units are available). You can choose particle retention ratings as fine as 5 microns.

Element surface is pleated to increase surface area. Units rated at 100 microns or finer have an underlying support layer of coarser mesh to prevent pleat collapse. Fabrication is by welding and crimping; no silver brazing or epoxy bonding is used.

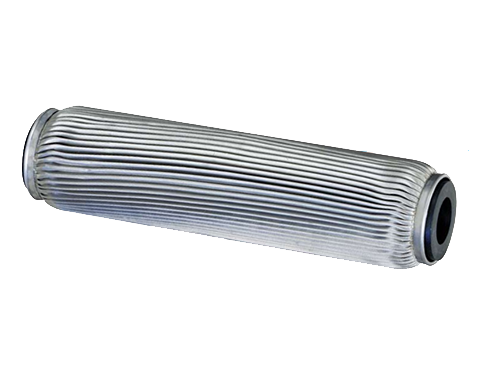

image of cartridge

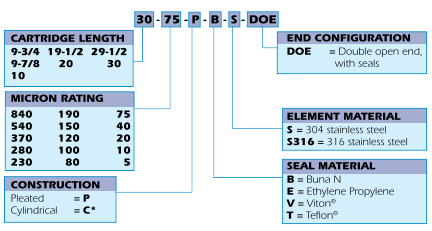

Build an ordering code as show in this example:

diagram of how to order

*Not a stock item

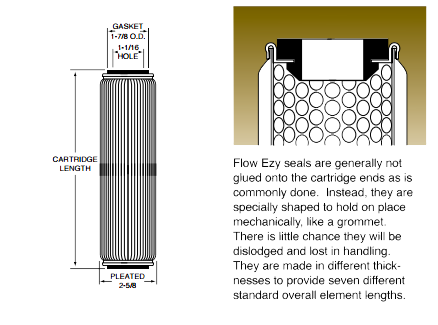

diagram of a cartridge
