Low-Cost In-line Filters

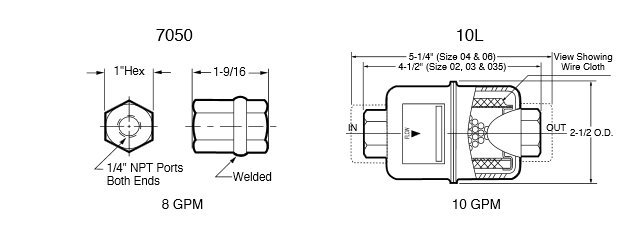

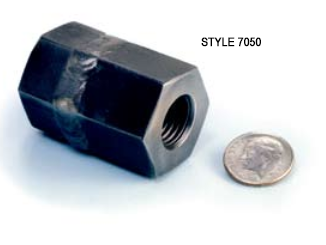

FOR STYLE 7050 (8 GPM)
The 7050 In-Line Filter is rated at 8 gpm. Stainless steel wire cloth elements are cleanable by backflushing.

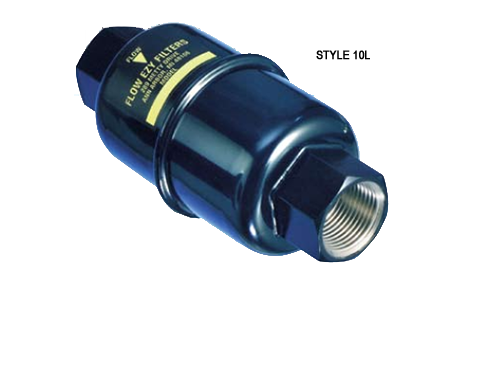

FOR STYLE 10L (10 GPM)
The 10L In-Line Filter is rated at 10 gpm (suction), 200 psi operating pressure, these filters are used on lubrication and hydraulic systems. Stainless steel elements are cleanable by backflushing. Synthetic depth-type elements are for throwaway use, and give finer filtration.
Housings are sealed canisters of carbon steel or stainless steel and contain 50 square inches of element over an inner support tube. Female NPT fittings are at both inlet and outlet. Options available are integral bypass valves and magnetic bands.
| Style | Element | Material | |
|---|---|---|---|
| 7050 | 01 | 238 Micron |
CS Carbon Steel SS Stainless |
| 02 | 74 Micron | ||
| 03 | 40 Micron | ||
| 05 | 159 Micron | ||
| 09 | 25 Micron | ||
| 10 | 10 Micron | ||
Select the desired specifications from the ordering table and build an ordering code number, as shown in this sample:
| 10L | - | 03 | - | 585 | - | RV-5 | - | M | - | CS |
|---|---|---|---|---|---|---|---|---|---|---|
| STYLE | - | NPT | - | ELEMENT | - | VALVE | - | MAGNETS | - | MATERIAL |
| Style | NPT Pipe |
Element (Mesh or Micron) |
Valve (Optional) |
Magnets Optional) |
Material |
|---|---|---|---|---|---|
| 10L | 02 (1/4) 03 (3/8) 04 (1/2) 06 (3/4) 03S (3/4-16) |
Stainless Wire: 595 238 149 74 40 25 Synthetics: 15A (micron) 40A (micron) |
RV-3 (3-psi) RV-5 (5-psi) RV-15 (15-psi) |
M |
CS Carbon Steel SS Stainless |
